PROJECT NAME: Klostervej i Ry

KØBENHAVNS ERHVERVSAKADEMI

Individual Bachelor Project

YEAR: Oct 2018- Jan 2019

ADDRESS: 29N Guldbergsgade, 2200 København N


Project Description: Klostervej i Ry is a multipurpose building that is half public, half private in function. The original concept was designed by Årstiderne Arkitekter for a competition project. Using the 11-page brief, I created an updated concept, a developed design stage, technical design, and production information for the building for my thesis as a Constructing Architect. I focused primarily on my prefabricated facade walls for my production information.

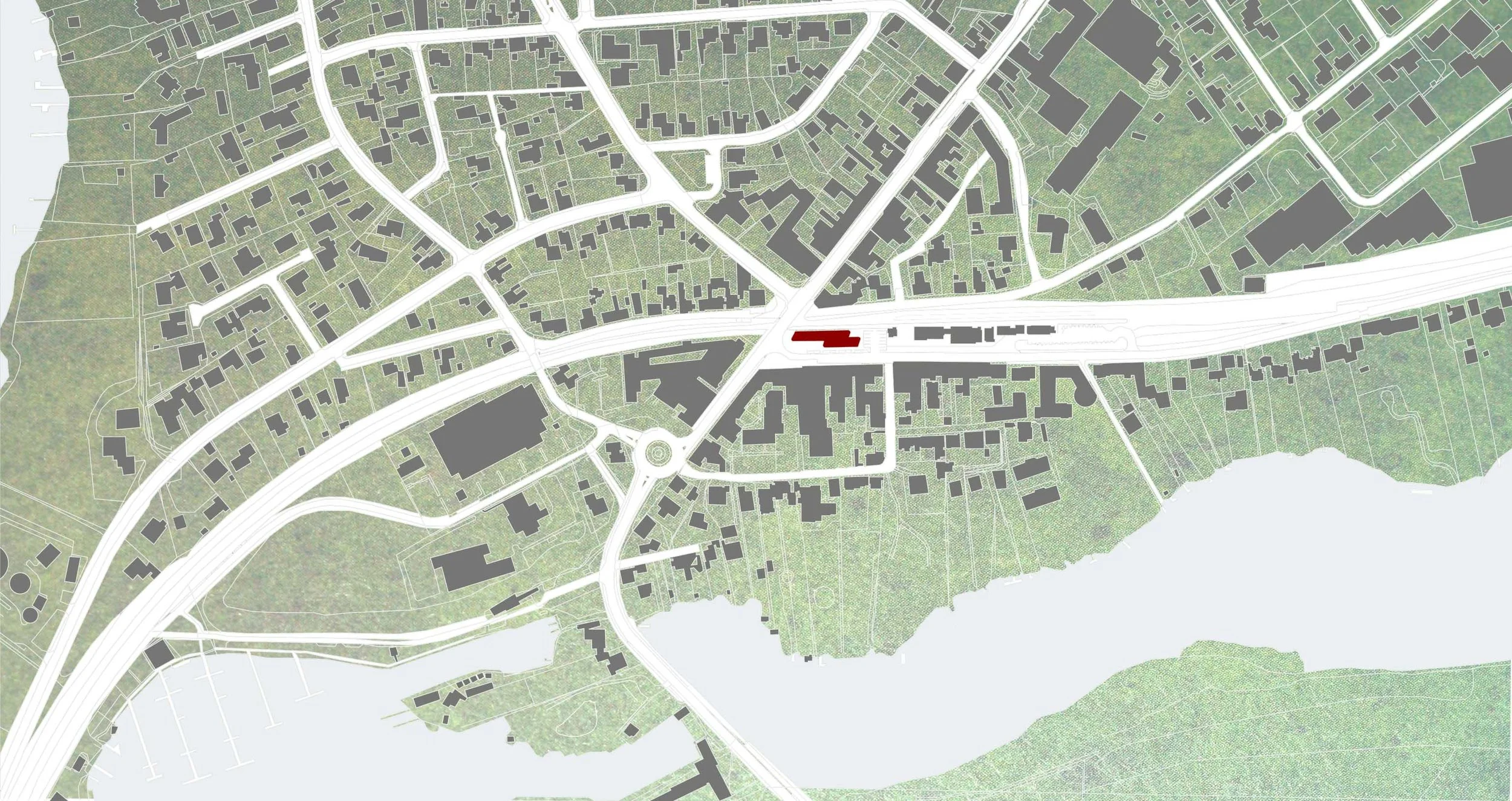

LOCATION PLAN

site drawing copy.jpeg

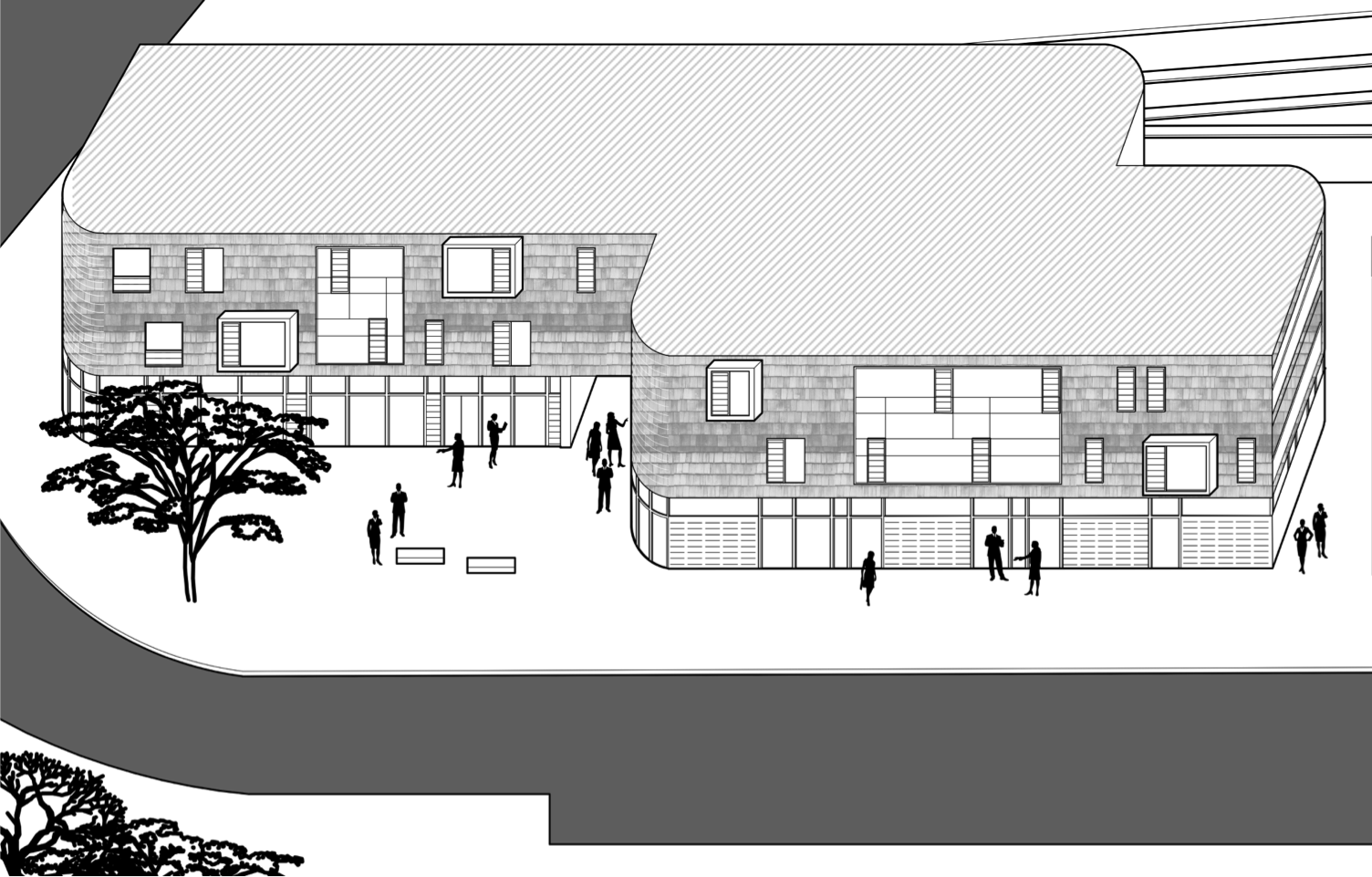

AXONOMETRIC DRAWING

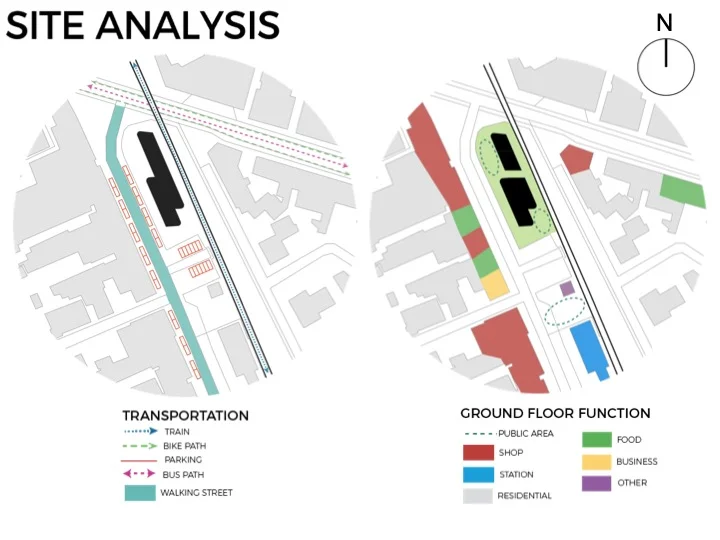

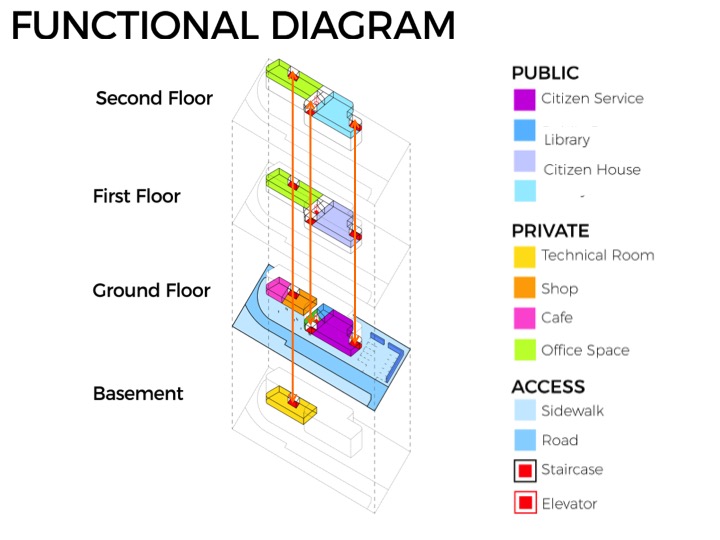

CONCEPT DRAWINGS

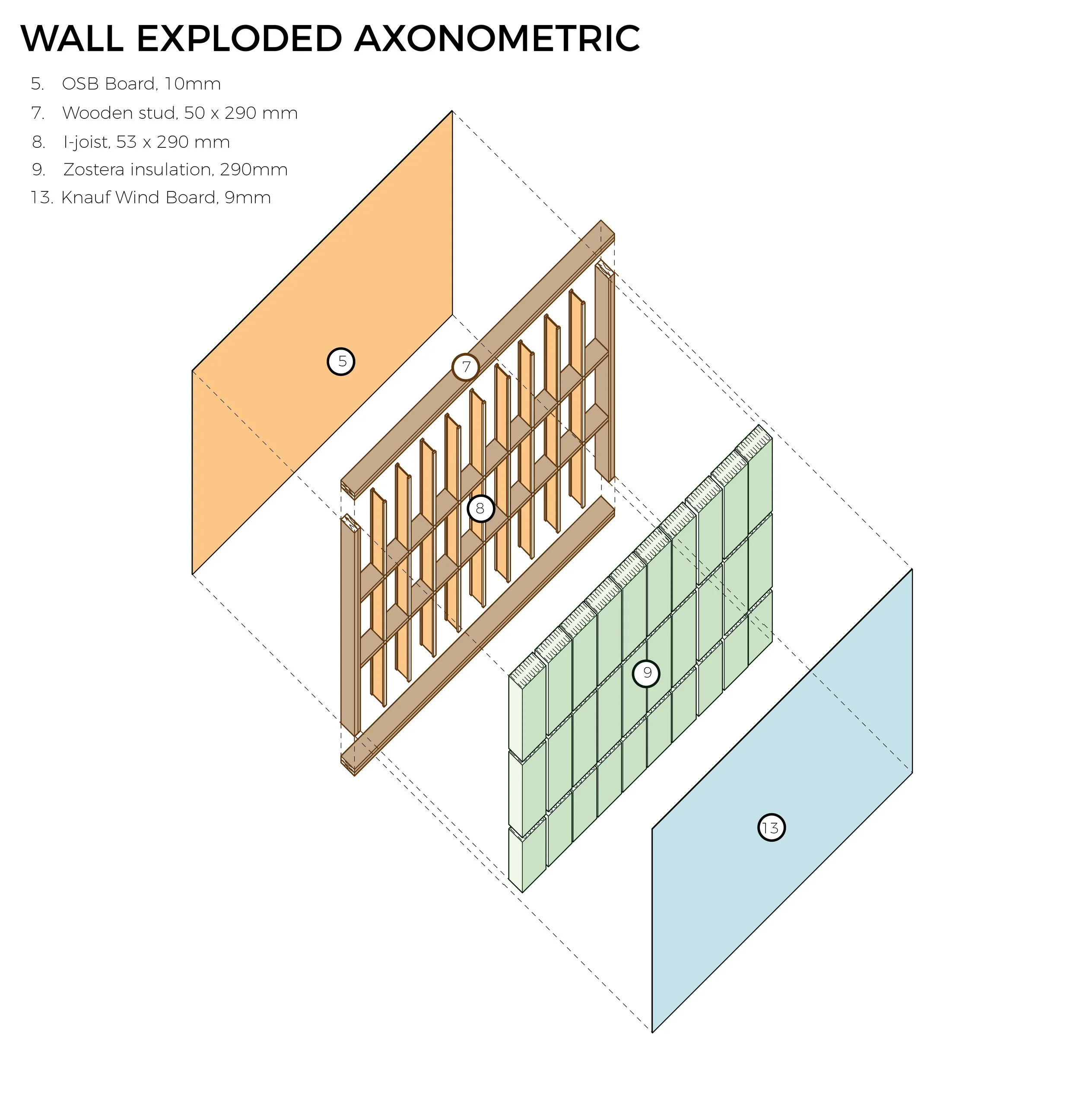

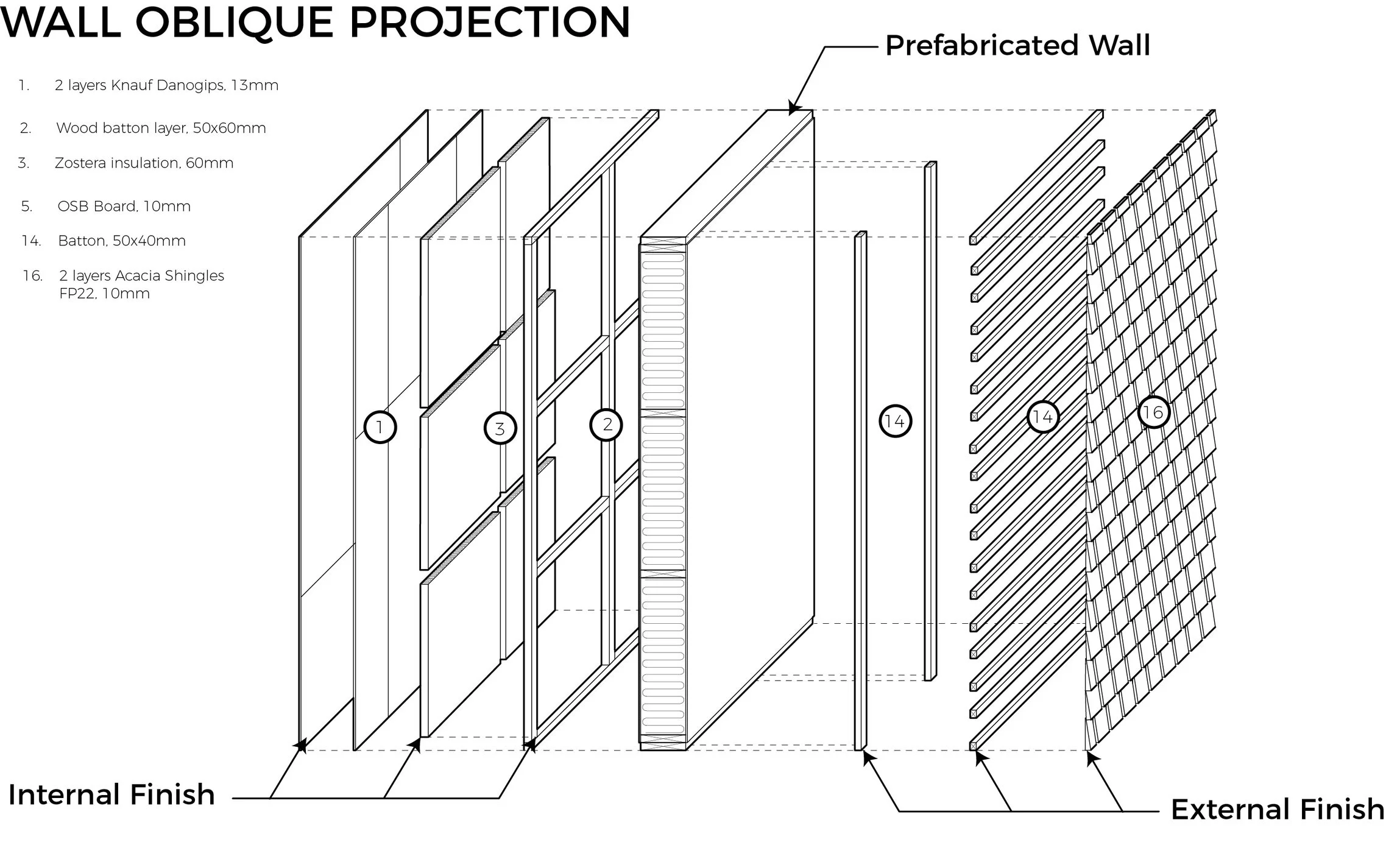

TECHNICAL OBLIQUE PROJECTION

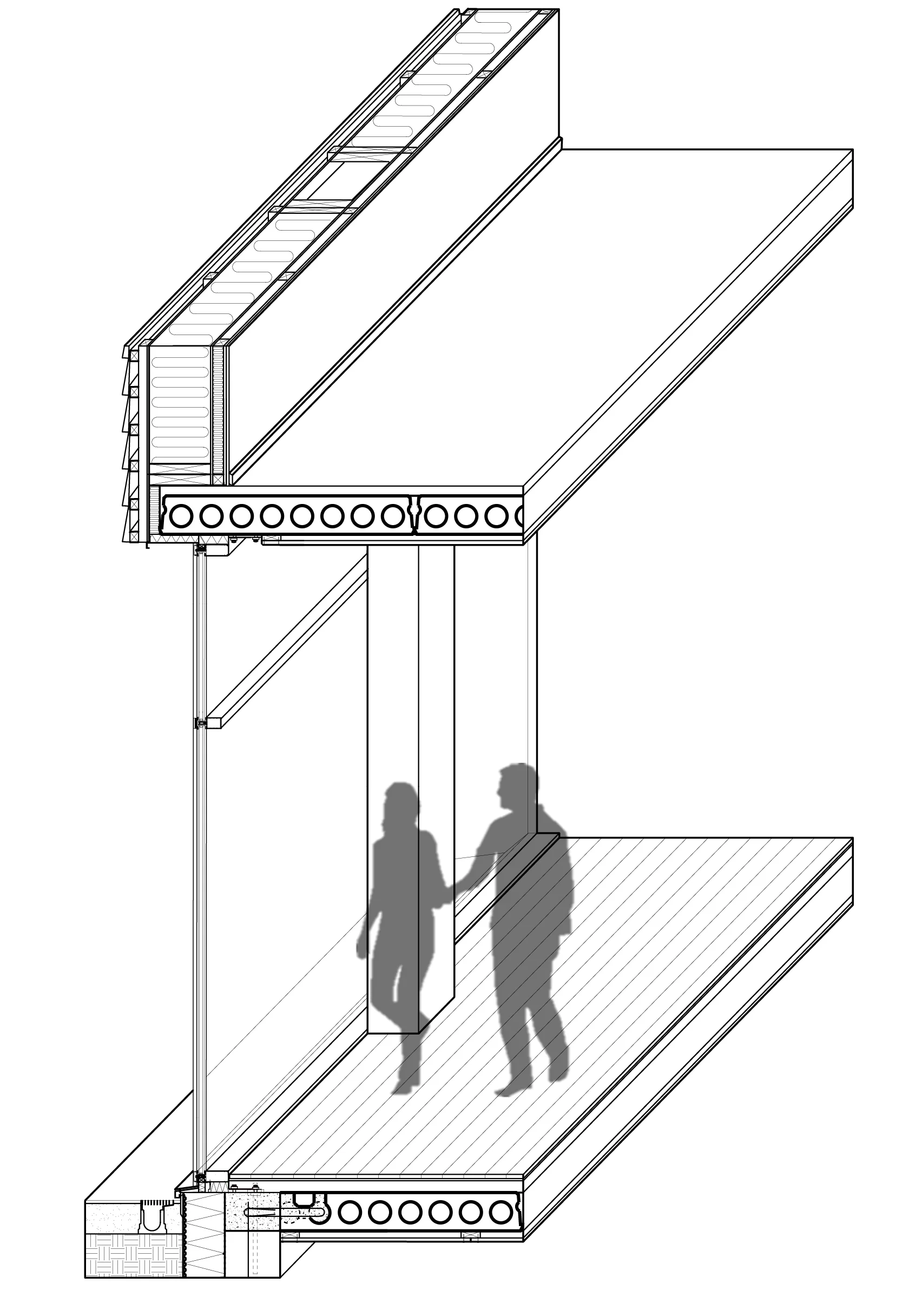

TECHNICAL SECTION

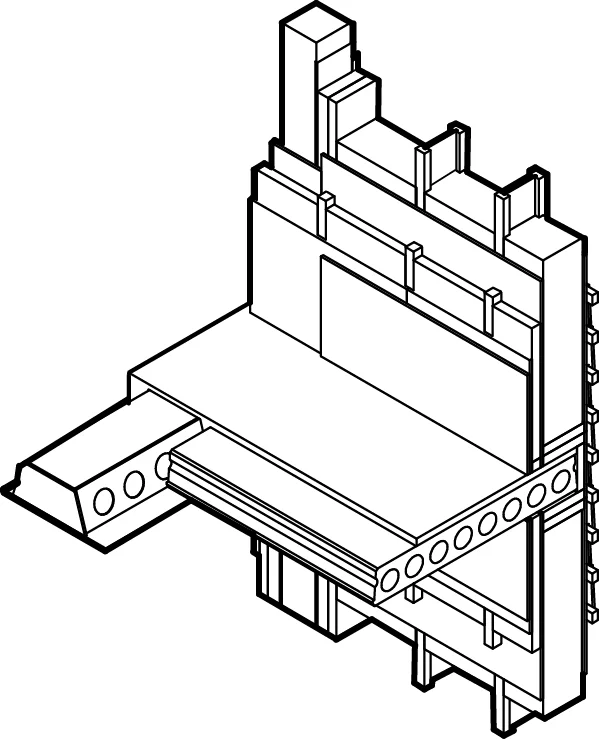

DETAIL DRAWINGS
